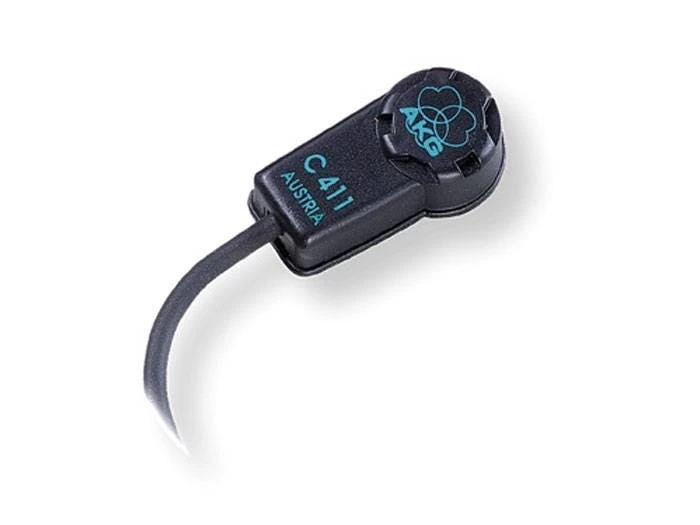

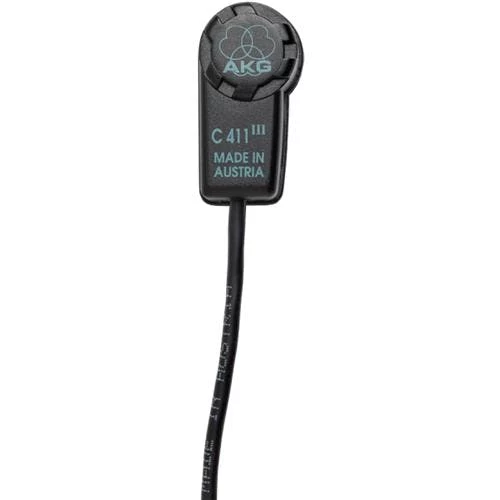

AKG C411PP Acoustic Instrument Pickup

This miniature pickup is ideal for acoustic guitars and stringed instruments. Light and compact, this vibration sensitive pickup faithfully reproduces the sound of your instrument to provide a great solution to amplifying non-electric instruments live, or providing an extra timbre to mix in to a studio recording. The C411PP features a standard XLR connector.

Here’s what AKG say about the C411:

Feel the vibe for acoustic guitar and other stringed instruments on stage and in the studio.

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.

Features

• Condenser transducer in sealed enclosure for clear and uncoloured sound.
• Ultralight vibration pickup does not change the balance of the instrument.

Specifications

General

• Audio Frequency bandwidth: 10 to 18000 Hz
• Sensitivity: 2 mV/Pa
• Electrical Impedance: 200 Ohms
• Recommended Load Impedance: 1000 Ohms
• Audio Frequency bandwidth: 10 to 18000 Hz
• Sensitivity: 2 mV/Pa
• Electrical Impedance: 200 Ohms
• Recommended Load Impedance: 1000 Ohms

Polar Pattern

• Polar Pattern: figure eight
• Number: 1

Powering Interface

• Voltage: 9 to 52 V
• Current: 2 mA

Audio Output

• Type: Mini XLR
• Gender: Female
• Contacts: 3-pin
• Type: Mini XLR
• Gender: Female
• Contacts: 3-pin

Design

• Body: plastic
• Finish: matte black

Dimensions & Weight

• Net Weight: 18 g
• Length: 9.7 mm
• Width: 14.2 mm
• Height: 26.7 mm
• Net Weight: 18 g
• Length: 9.7 mm
• Width: 14.2 mm
• Height: 26.7 mm
