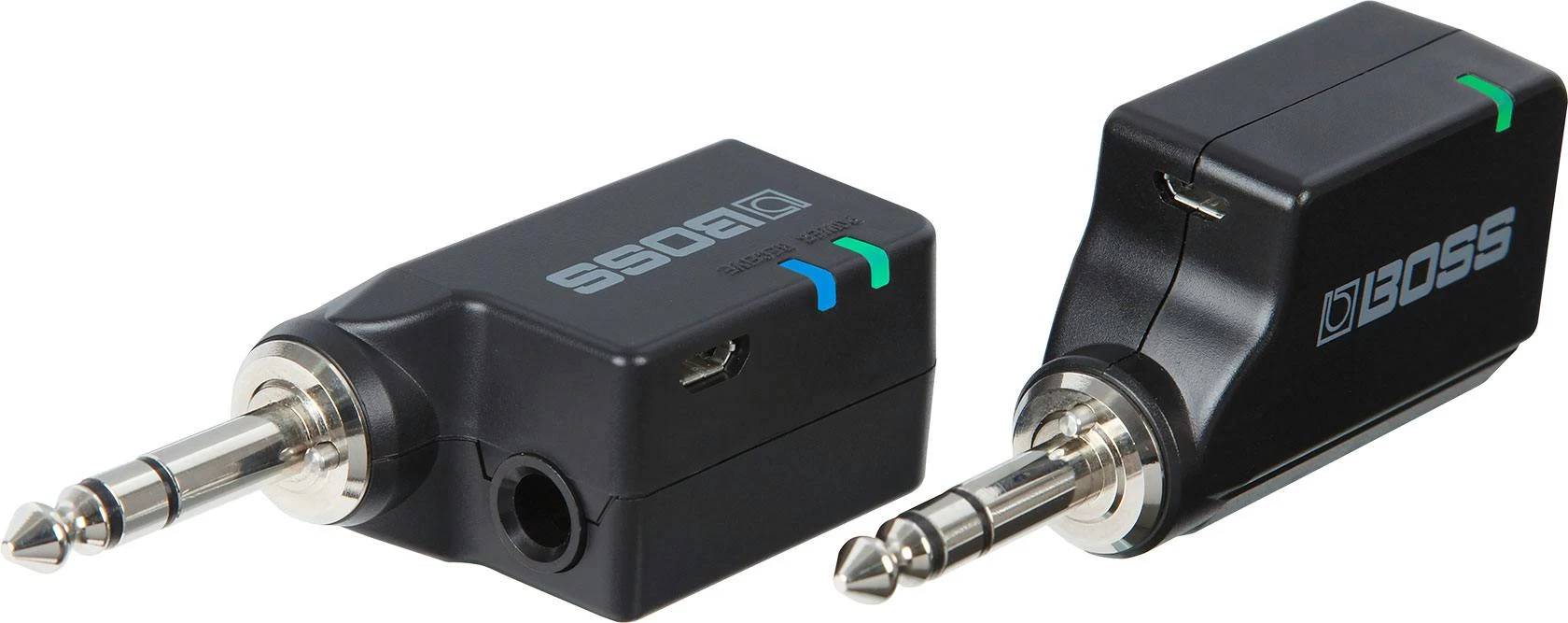

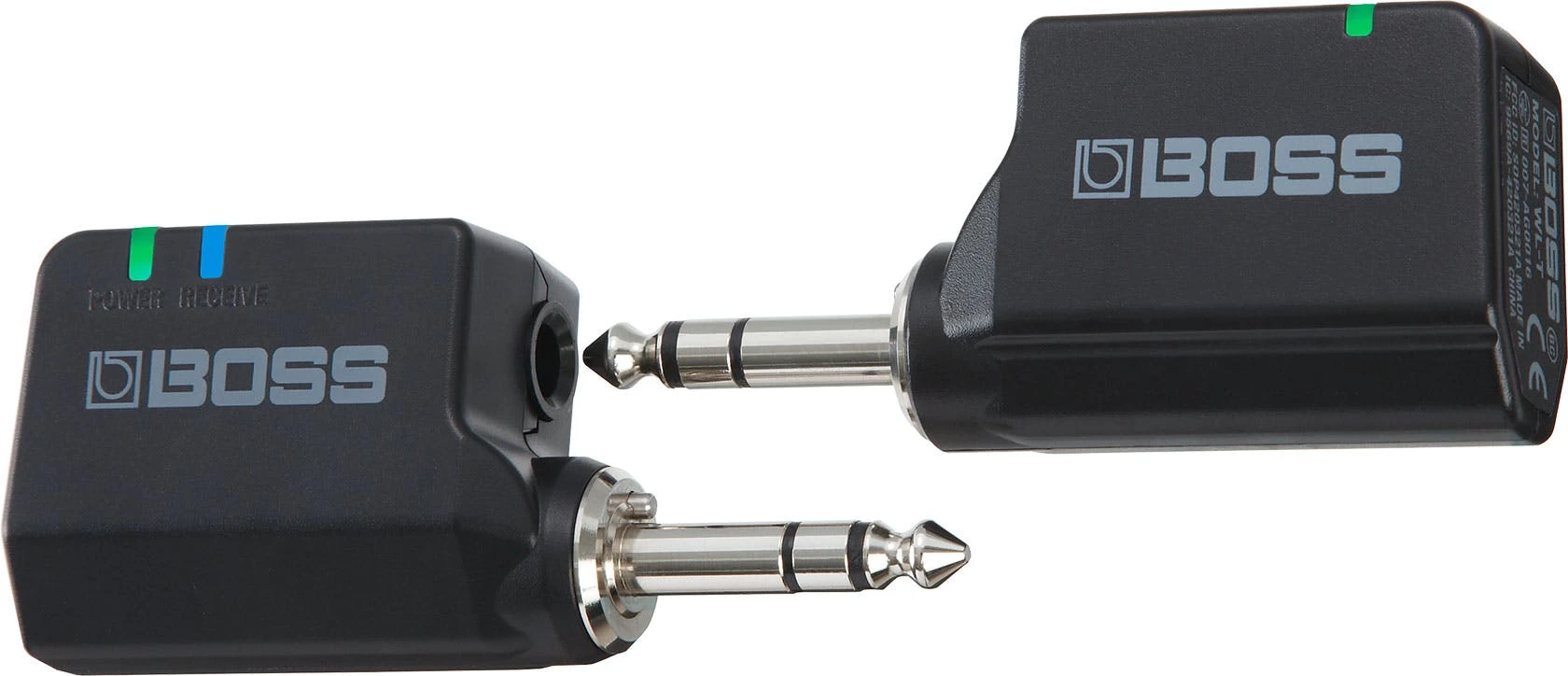

Boss WL-20 Compact Wireless Guitar System

This is wireless systems made easy. Boss introduce the WL-20 – simply need to plug in and get playing. No frequency changing issues, just really simple, intuitive tech to give you peace of mind plugged into an amp.

Key Features

• Plug-and-play wireless systems for guitar, bass, and other electronic instruments
• No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
• Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 50-foot/15-meter range (line-of-sight propagation)*
• Built-in rechargeable batteries provide up to 12 hours of continuous playing time**
• Simple charging with a standard USB adaptor (5 V/500 mA or greater)
• Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable (WL-20 model only)
• Spare WL-T Transmitter available separately
• Not compatible with active pickup guitars, see Boss WL-20L

Reliable and quality audio

Extremely compact, the WL-20 fits snug into your guitar right out the way without disrupting any playing comfort. Simply dock the transmitters to set up connection quickly and charge for up to 12 hours of playing time.

Don’t expect any signal drop-outs as the Boss wireless system works in a 2.4 GHz frequency for great audio. Ultra-low latency also prevents a lag between playing and the amp producing sound.

Cable sound recreation

The WL-20 has the option to replicate the capacitive sound created when using a 10-foot cable connection, which works especially well paired with passive pickups. The result is a warm tone with a slightly rolled-off treble frequency.

Included in the Box

• Owner’s Manual
• Leaflet – USING THE UNIT SAFELY
• Transmitter
• Micro USB cable for charging (Use a standard USB AC adaptor (5 V/over 0.5 A) for charging)

Technical Specifications (RECEIVER)

• Wireless Format: BOSS proprietary digital audio format
• Wireless carrier frequency: 2.4 GHz
• Compatible Channels: 14 (May vary due to local conditions)
• Transmission Range: Up to 50 feet line-of-sight (May vary due to local conditions)
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz–20 kHz
• Nominal Output Leve: l-10 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Indicators: POWER, RECEIVE
• Connectors: Output plug (1/4-inch TRS phone type), Transmitter jack: (1/4-inch TRS phone type), DC IN 5 V port (USB Micro-B type)
• Power Supply: Rechargeable lithium-ion battery, Supplied from the DC IN 5 V port
• Current Draw: During wireless operation – 60 mA / While charging – 500mA
• Battery charging time: Charging only the receiver – Approximately 3 hours / Charging simultaneously with the transmitter – Approximately 4 hours
• Expected battery life under continuous use: Approximately 10 hours

Size and Weight (RECEIVER)

• Width: 87 mm
• Depth: 25 mm
• Height: 38 mm
• Weight: 60 g

Technical Specifications (TRANSMITTER (WL-T))

• Nominal Input Level: -10 dBu (1 M ohm)
• Indicator: BATTERY
• Connectors: Input plug (1/4-inch TRS phone type), DC IN 5 V port (USB Micro-B type)
• Power Supply: Rechargeable lithium-ion battery, Supplied from the DC IN 5 V port
• Current Draw:350mA
• Battery charging time: Approximately 3 hours
• Expected battery life under continuous use: Approximately 12 hours

Size and Weight (TRANSMITTER (WL-T))

• Width: 87 mm
• Depth: 22 mm
• Height: 36 mm
• Weight: 43 g
