BOSS WL-60 Wireless Visual Guitar System

It’s easier than ever to take your instrument wireless! The Boss WL-60 is a seamless wireless system designed to fit on your pedalboard or by your other effects.

Key features

• Premium audio performance with lightning-fast BOSS wireless technology
• Automatic 14-channel scanning makes set up quick and uncomplicated
• Large LCD shows channel status, wireless strength, battery life, and more
• Stompbox-size receiver fits easily on your pedalboard
• Bodypack transmitter works with nearly any instrument and runs for up to 25 hours on two AA alkaline batteries
• Transmission range: 20 meters/65 feet line of sight (may vary due to local conditions)
• Short high-quality cable included for connecting the transmitter to a guitar or bass
• Receiver powered by AC adaptor or two AA alkaline batteries
• Convenient DC output on receiver for powering other pedals (when using AC adaptor)
• Instrument input for using a standard cable without removing the receiver from a pedalboard
• Included WL-60T Transmitter also available separately for backup and outfitting additional stage instruments

Simple Design

Cut the hassle of setting up a wireless system. The WL-60 contains automatic 14-channel scanning ability for quick setup. The compact receiver has an LCD screen displaying channel status, wireless strength and battery life to view important details from your board.

Studio Quality

The WL-60 performs to an incredibly high studio standard. This is premium Boss audio with ultra low latency up to 20 metres away from the receiver. Runs up to 25 hours on two alkaline batteries.

Included in the Box

• Owner’s Manual
• Leaflet USING THE UNIT SAFELY
• Transmitter
• Guitar cable
• Rubber foot x 4
• Alkaline battery (AA, LR6) x 2

Technical Specifications (RECEIVER)

• Wireless Format: BOSS proprietary digital audio format
• Wireless carrier frequency: 2.4 GHz
• Compatible Channels: 14 (May vary due to local conditions)
• Transmission Range: 65 feet line-of-sight (May vary due to local conditions)
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz-20 kHz
• Nominal Input Level: -10 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -10 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Controls: CH button, SCAN button, ENTER button, CABLE TONE button
• Indicators: Graphic LCD 64 x 32 dots
• Connectors: INPUT jack (1/4-inch phone type), OUTPUT jack (1/4-inch phone type), IN jack, OUT jack
• Power Supply: Alkaline battery (AA, LR6) x 2, AC adaptor (sold separately)
• Current Draw: 100 mA
• Expected battery life under continuous use: Alkaline battery (AA, LR6): Approximately 7 hours

Size and Weight (RECEIVER)

• Width: 70 mm
• Depth: 120 mm
• Height(excluding rubber foot): 54 mm
• Height(including rubber foot): 57 mm
• Weight (excluding battery): 180 g
• Weight (including battery): 220 g

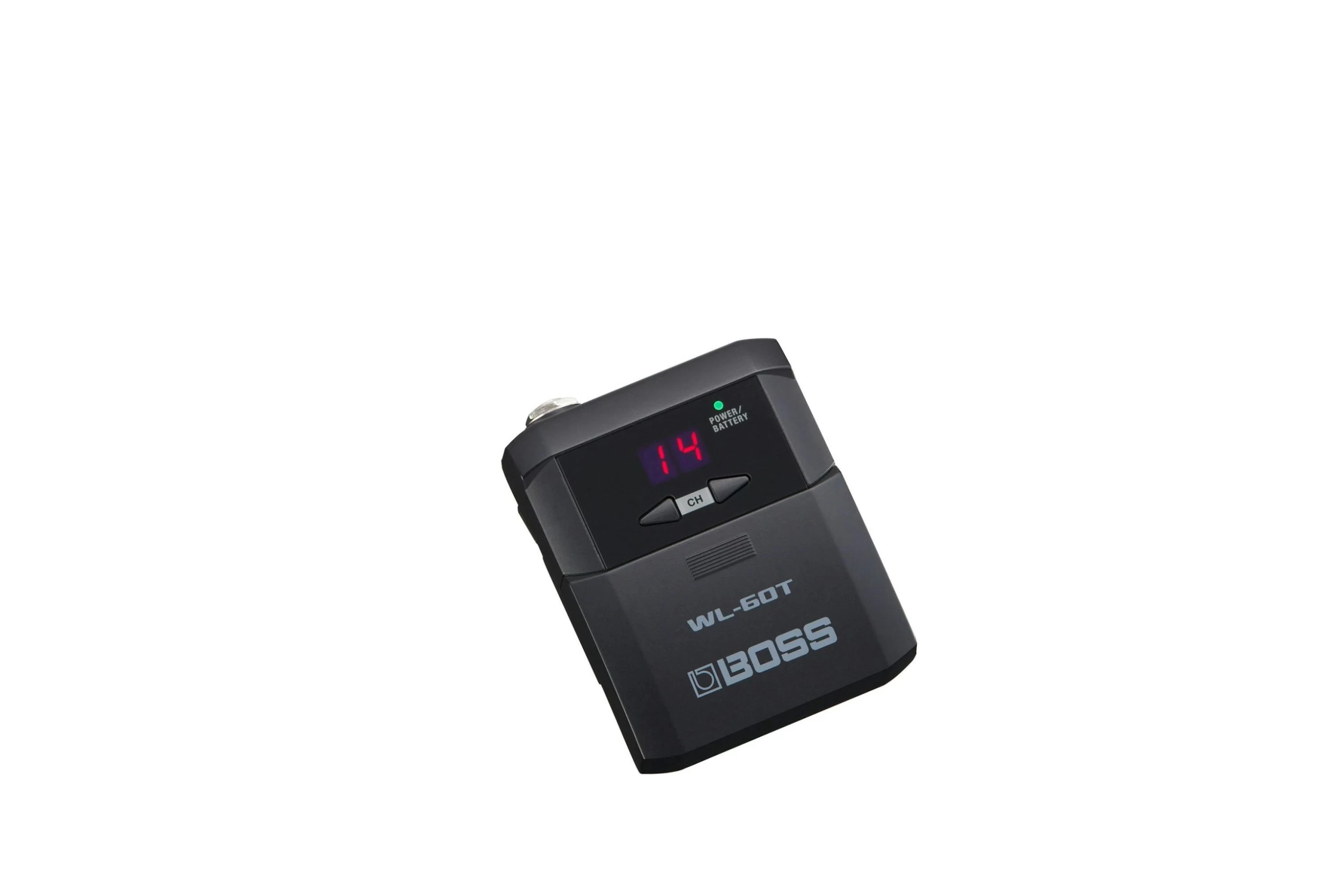

Technical Specifications (TRANSMITTER (WL-60T))

• Nominal Input Level: -10 dBu (1 M ohm)
• Controls: POWER switch, CH button
• Display: 7 segments, 2 characters (LED)
• Indicator: POWER/BATTERY
• Connectors: INPUT jack (1/4-inch phone type)
• Power Supply: Alkaline battery (AA, LR6) x 2
• Current Draw: 110 mA
• Expected Battery Life Under Continuous Use: Alkaline battery (AA, LR6) – Approximately 25 hours

Size and Weight (TRANSMITTER (WL-60T))

• Width: 68 mm
• Depth: 88 mm
• Height (including strap clip): 30 mm
• Weight (including battery): 120
