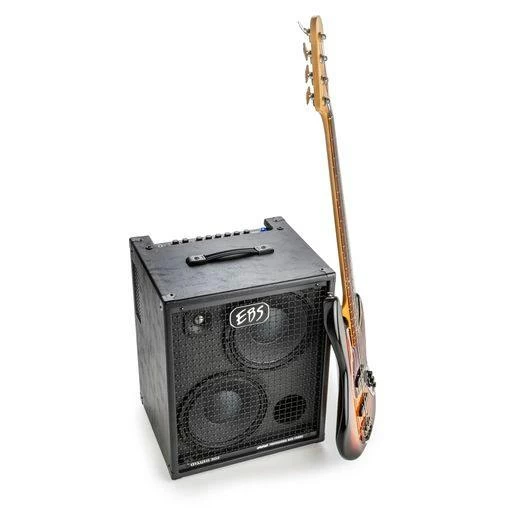

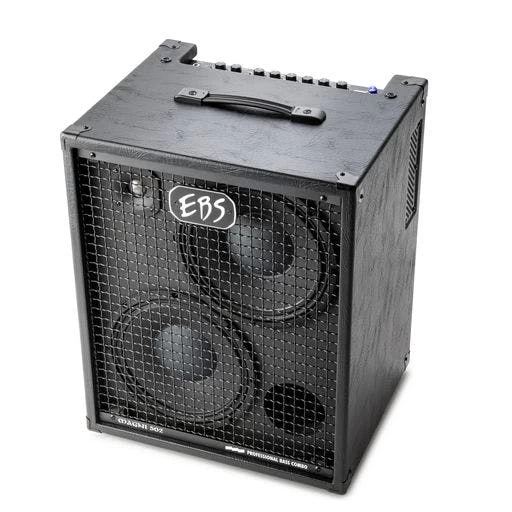

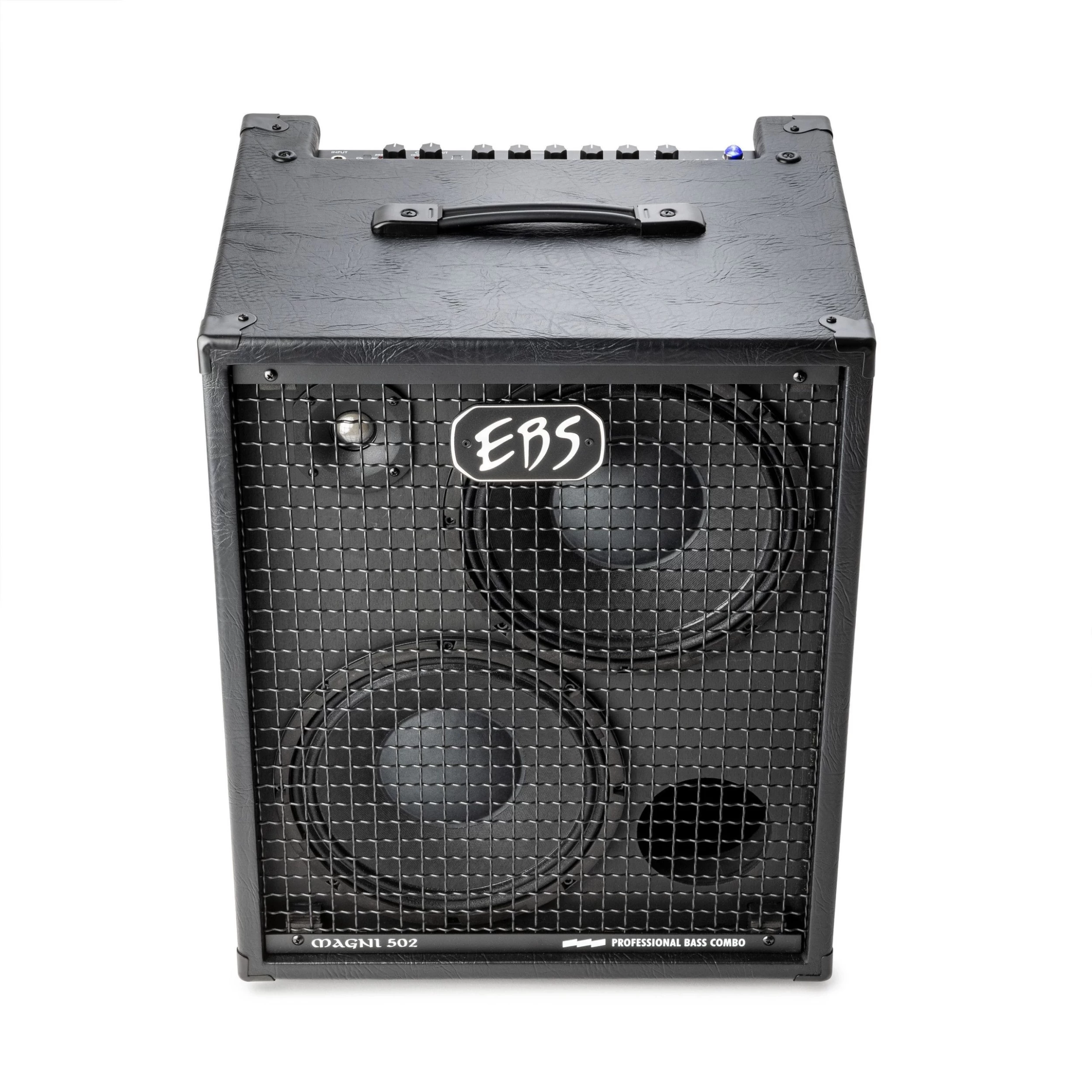

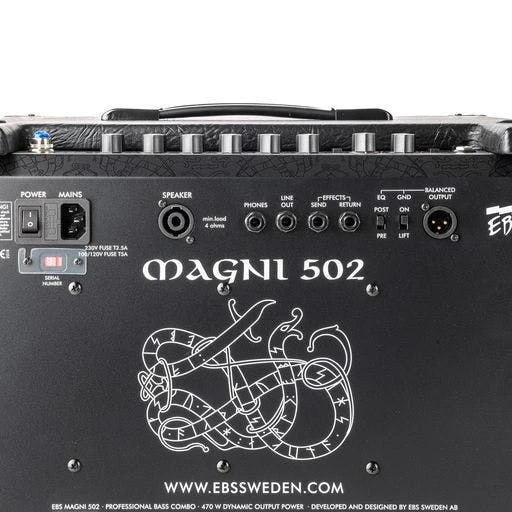

EBS Magni 502 2×10 500w Lightweight Bass Combo

Here’s what EBS say…

Lightweight beyond this world

The choices of materials in conjunction with neodymium speakers make the EBS Magni 502 one of the lightest bass combos in its class (only 15.4 kg for the 210-model!). But don’t worry – the sound is anything but lightweight.

Let the sound out of the box

With the innovative porting of the cabinet both on the front and back, the compact cabinet delivers more output and low-end bass than you would imagine judging by the appearance. The double-porting helps distribute the sound evenly for a multi-dimensional sound experience that uses the room itself to support and distribute the sound. Still, the tone is solid, punchy, and tight due to the amp’s use of EBS-developed soft clip technology and the highly efficient Neodymium speakers.

Filters and features that make a difference

The amplifier is similar to the EBS Reidmar 502, which means an analog preamp with powerful filters to shape the sound and a 500 W power module developed by EBS with the possibility to hook up an extra cabinet at 4 or 8 ohms if ever needed. You can also use the high-quality XLR output for a balanced line signal from the amp to the FOH mixer without needing an external line box.

Magnificient upgrades since the previous Magni 500 series:

• Reduced weight by 6 kg!
• Neodymium speakers with improved frequency response, power, and punch.
• The power amp, developed by EBS, operates at 4 ohms and can handle a 2-ohms load. It makes it possible toextend the combo with one 4-ohm or up to two extra 8-ohm speaker cabinets.
• Better suited for the road due to a new hard vinyl coating.
• The woven steel grill contributes to the lesser weight and provides improved airflow.

Specifications:

• Input Impedance:
  1 Mohms // 100 pF

• Character Filter:
  Low +7 dB @ 40 Hz
  Mid -2dB@ 800Hz
  High +3 dB @ 10 kHz

• Comp/limit:
  Gain 0 dB
  Attenuation max 24 dB
  Compression Ratio max 3:1
  Attack (80%) typ. <10 ms
  Release (80%) typ. 100 ms

• Bass Filter:
  Type 12 dB/oct. Shelving
  Gain Range +/-18dB @ 60Hz

• Middle Filter:
  Type Bandpass Filter
  Frequency Range 100 -6.000 Hz
  Gain Range +/-12-15 dB

• Treble Filter:
  Type Shelving
  Gain Range +/-18dB@6kHz
  Bright: Type Shelving
  Gain Range +15/-0 dB @ 10 kHz

• Balanced XLR output:
  Output Level Nominal -10dBv
  Frequency Response +0/-3 dB 10-20.000 Hz
  XLR Connections 1-GND, 2-Hot, 3-Cold
  Options GND Lift, Pre/Post EQ

• Effect Loop:
  Loop Signal Level nominal -10 dBv
  Gain Unity (1:1)
  Output Impedance 100 ohms
  Input Impedance >50 Kohms // 100 pF

• Line out:
  Output Impedance 100 ohms
  Signal Level nominal 0 dBv

• Phones out:
  Impedance recommended 32 -200 ohms

• Power amp:
  500 W

• External cabinet output:
  Minimum Load Impedance of external cabinet is 4 ohms
  Connect via Speakon output jack.

• Auxiliary output:
  Power Requirements max 500 W
  Mains Protection: T2.5A Fuse (230V) T5A Fuse (100/120V)

• Cabinet:
  Configuration: 2x 10″ Neodymium Speakers + tweeter
  Frequency Response: 45 – 20k Hz
  Size: (H x W x D) 56 cm / 22″ / 44 cm / 17.3″ / 36.5 cm / 14.4″
  Weight (total): 15.4 kg / 33.95 lbs
