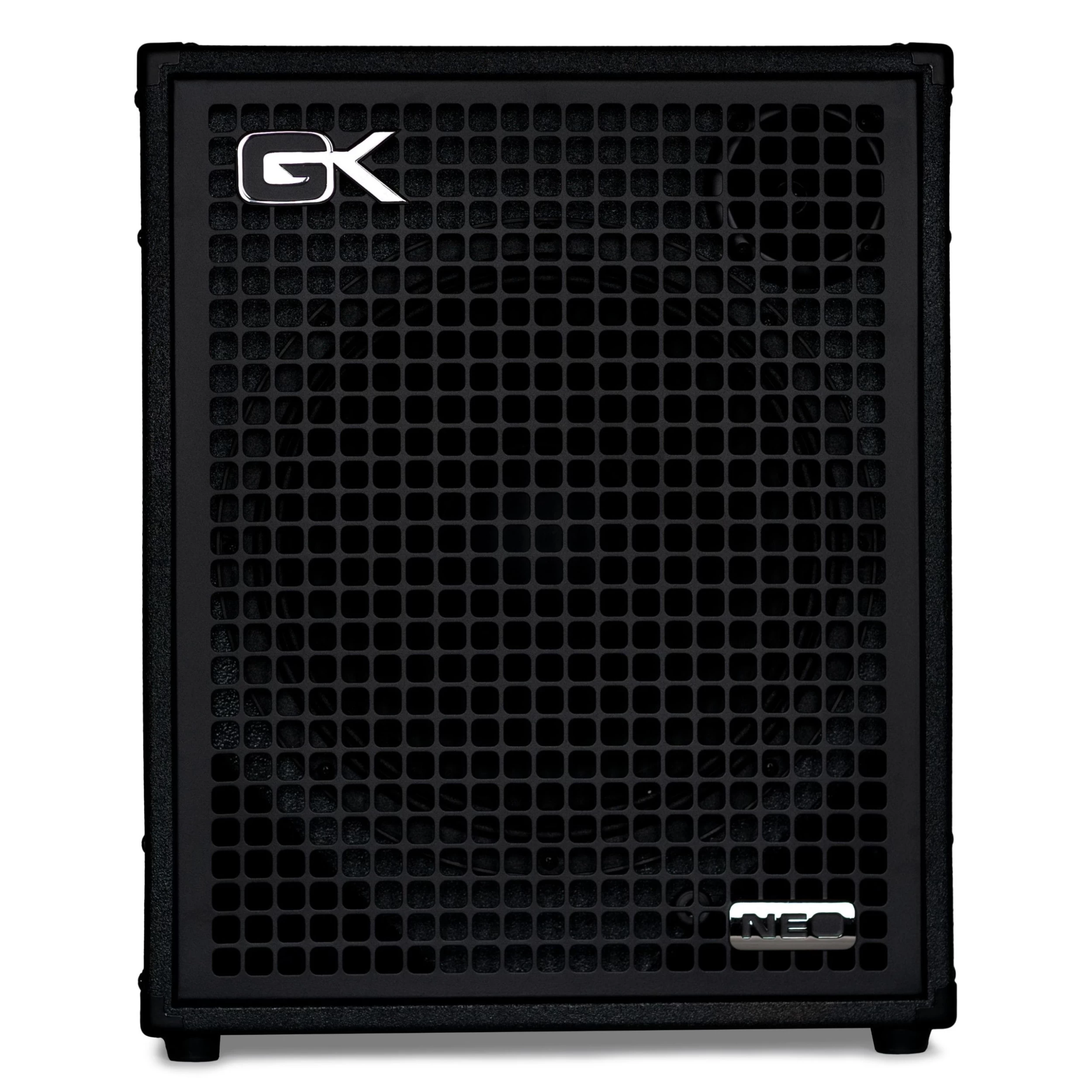

Gallien-Krueger Fusion 115 1×15″ 800W Bass Amp Combo

Building on the foundation of Gallien-Krueger’s popular Microbass amps, the Fusion Series offers a wealth of player-friendly features for today’s gigging musician. Bringing together performance and portability, the Gallien-Krueger Fusion 115 is a high-powered combo that is ready for the biggest stages, the home studio and everything in between.

The Fusion 115 is a compact bass combo boasting an eye-watering 800 watts of solid state power and features GK’s unique 6-stage tube powered preamp. The 12ax7 tubes in the EQ section bring a warmth to the sound that compliments the already wide ranging and useful response. Additional “Voice”, “Cut”, “Body”, “Bump”, “Contour”, “Hi Cut” and “Presence” voicing filters allow you to dial in the perfect bass tone with ease. The independent overdrive circuit is also powered by a pair of tubes, working just like the input stage of a tube power amp. When you dig in and player harder, you get an organic breakup similar to that of a tube amp. The overdrive channel can be activated via the included footswitch for seamless use in a live environment.

At the heart of the Fusion 115 is a 15″ Neodymium woofer and 1″ tweeter, manufactured by GK specifically for the Fusion Series. The speakers and cabinets are designed from the ground up to work together to deliver the best possible performance for bass guitar. All Fusion Series amps use a unique interconnection system to help eliminate problems that can arise from extremes in temperature and heavy vibrations. By using circuit boards with gold-plated connectors as opposed to cables with standard tin connectors, the Fusion 115 is extremely reliable and delivers a purer sound. The Fusion 115 also boasts universal power for seamless 100 to 240 volt operation, making it perfectly suited for everything from local jams to major tours anywhere in the world.

Key Features

• Six Stage Tube Preamp with (3) 12ax7s
• Four band active EQ
• Foot Switchable Tube Overdrive with Tone Control (Footswitch Included)
• Illuminated Knobs with Push Activated “Voice”, “Cut”, “Body”, “Bump”, “Contour”, “Hi Cut” and “Presence” Voicing Filters
• Balanced XLR Output Selectable Pre and Post EQ
• Unbalanced ¼” Send and Return
• Aux Input and Headphones Output
• Twist Lock Speaker Outputs
• 2, 2.7, 4 and 8ohm Load Capacity
• 800 watt Switch Mode Power amp
• Neodymium Speaker
• 1” Tweeter

Specifications

Output Power

• 400W Internal (8Ω)
• 800W with 8Ω Extension
• 800W with 4Ω Extension

Input Section

• Maximum Input Level: 0.6V rms
• Input Impedance: 1M Ohms
• Direct Output Impedance: 500 Ohms
• Aux-in Input Impedance: 100K Ohms

Equalizer

• Bass: +/-10dB@60Hz
• Lo-Mid: +6dB/-10dB@250Hz
• Hi-Mid: +6dB/-10dB@1KHz
• Treble: +/-14dB @ 7KHz
• Voicing Filters: Contour +2dB@50Hz/-10dB@500Hz/+3dB @ 7 KHz
• Noise: -90 dB reference to 800W, ‘A’ weighted

Dimensions

• (HxWxD): 24.60” x 19.12” x 14.70”
• Weight: 39.2 lbs
