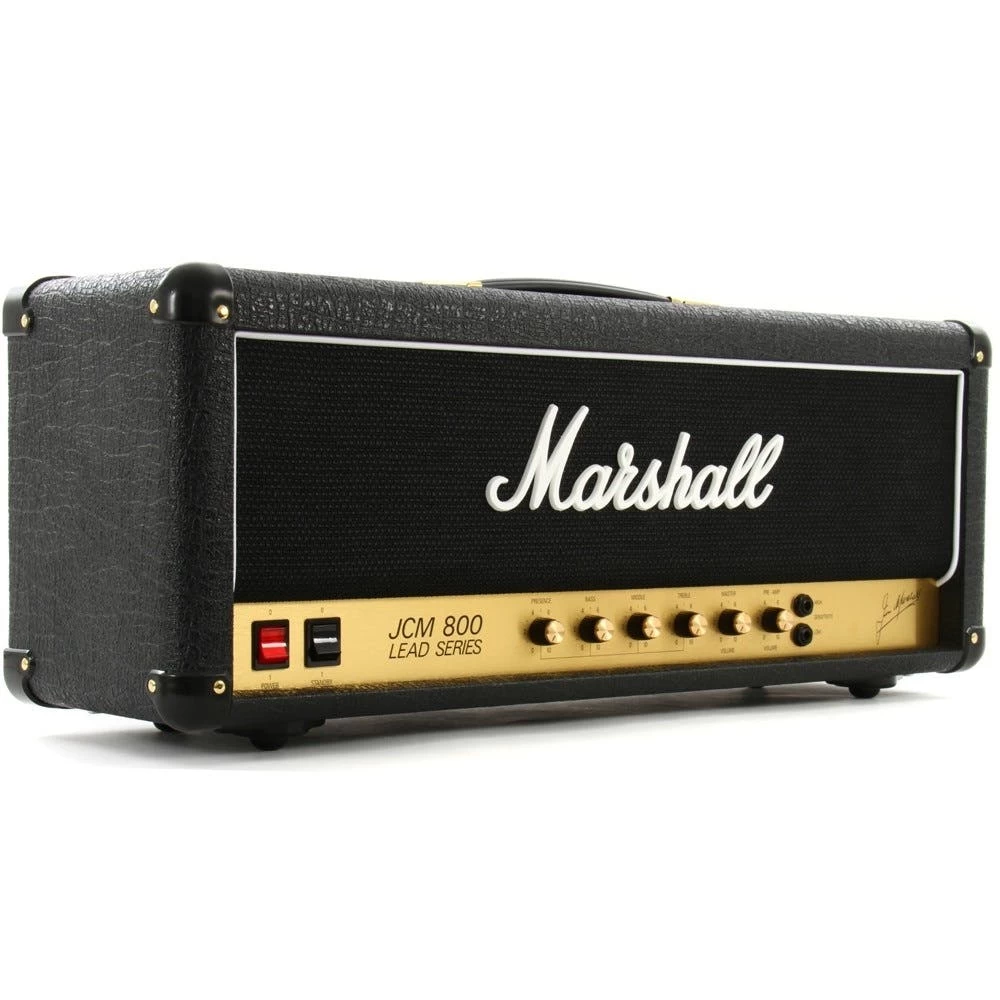

Marshall JCM800 2203 Vintage Reissue 100W Valve Amp Head

A legend in the world of guitar amps, the JCM800 2203 is the 100W all-valve head that kicked off the Marshall JCM revolution and changed the face of modern amplifiers.

Simple yet effective, the distinctive sound of the single-channel JCM800 can be heard on thousands of records. That highly-saturated yet tight distortion which transparently brings out the creaminess of a humbucker, or the vibrancy of a single-coil.

Tribute To A Classic

Marshall’s original JCM800 was used by countless rockstars throughout the ’80s and ’90s, including Billy Corgan, Jeff Beck and Tom Morello; spanning many different genres and proving just how versatile the amp circuit is.

The modern 2203 doesn’t seek to expand on the original design too much. Featuring a simple EQ section with preamp gain and master volume controls, the high and low sensitivity inputs also remain; helping you to control your overall gain and level. Just plug into a classic Marshall 4×12″ cab and you’re away – instant, iconic and 100% authentic rock guitar tone!

Series Effects Loop

Although the original formula remains mostly intact, Marshall thoughtfully added a series effects loop to the Vintage Reissue JCM800. So if you’re a stompbox fanatic, the 2203 can serve as an excellent pedal platform – just connect your favourite modulation and time-based pedals through the loop for seamless sonic bliss!

Featuring a true bypass switch, you can engage this to take the loop completely out of the circuit. This ensures that the original tone isn’t compromised in any shape or form.

Specifications

General

• Model: JCM800 2203
• Range: Vintage Reissue
• Technology: Valve
• Channels: 1

Electronics

• Output Wattage: 100W
• Outputs: 2 x 1/4″ jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω load
• Inputs: 2 (1 x high, 1 x low)
• Controls: Presence, bass, middle, treble, master volume, preamp volume
• Effects: None
• Effects Loop: Yes, 1 x serial switchable

Valves

• Preamp Valves: 2 x ECC83, 1 x ECC83 (phase splitter)
• Power Amp Valves: 4 x EL34

Accessories

• Cable: Detachable power cable included, speaker cable included
• Footswitch: None

Dimensions

• Weight: 20.5 kg / 45 lbs
• Width: 740 mm / 29.1″
• Height: 315 mm / 12.4″
• Depth: 210 mm / 8.3″
