Sennheiser XSW 2-CI1-E Instrument Set

Here’s what Sennheiser say about the XSW 2-Cl1-E

Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

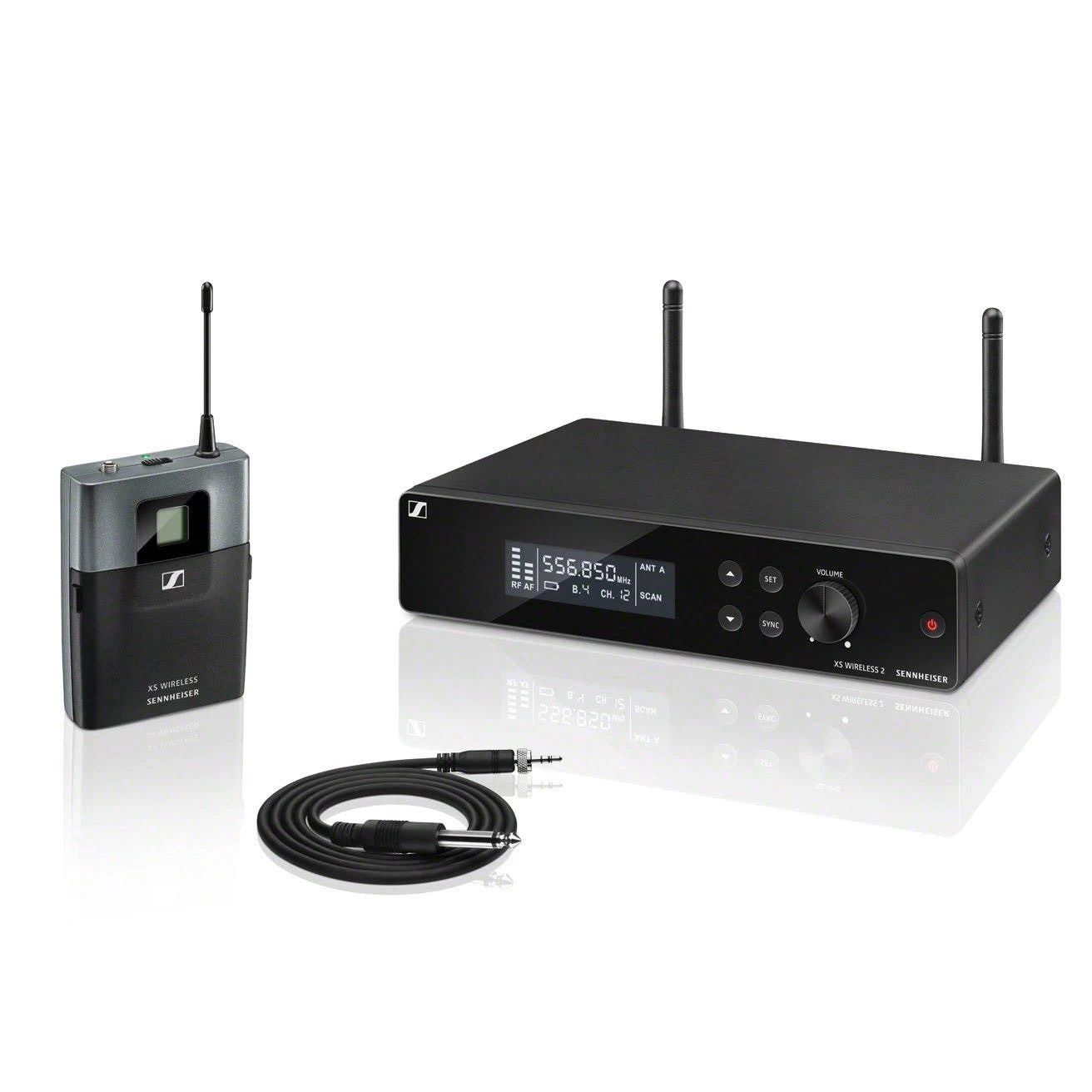

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included.

E-Range: 821 – 832 MHz, 863 – 865 MHz

Key Features

• Robust instrument cable and compact bodypack transmitter
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Included in the Box

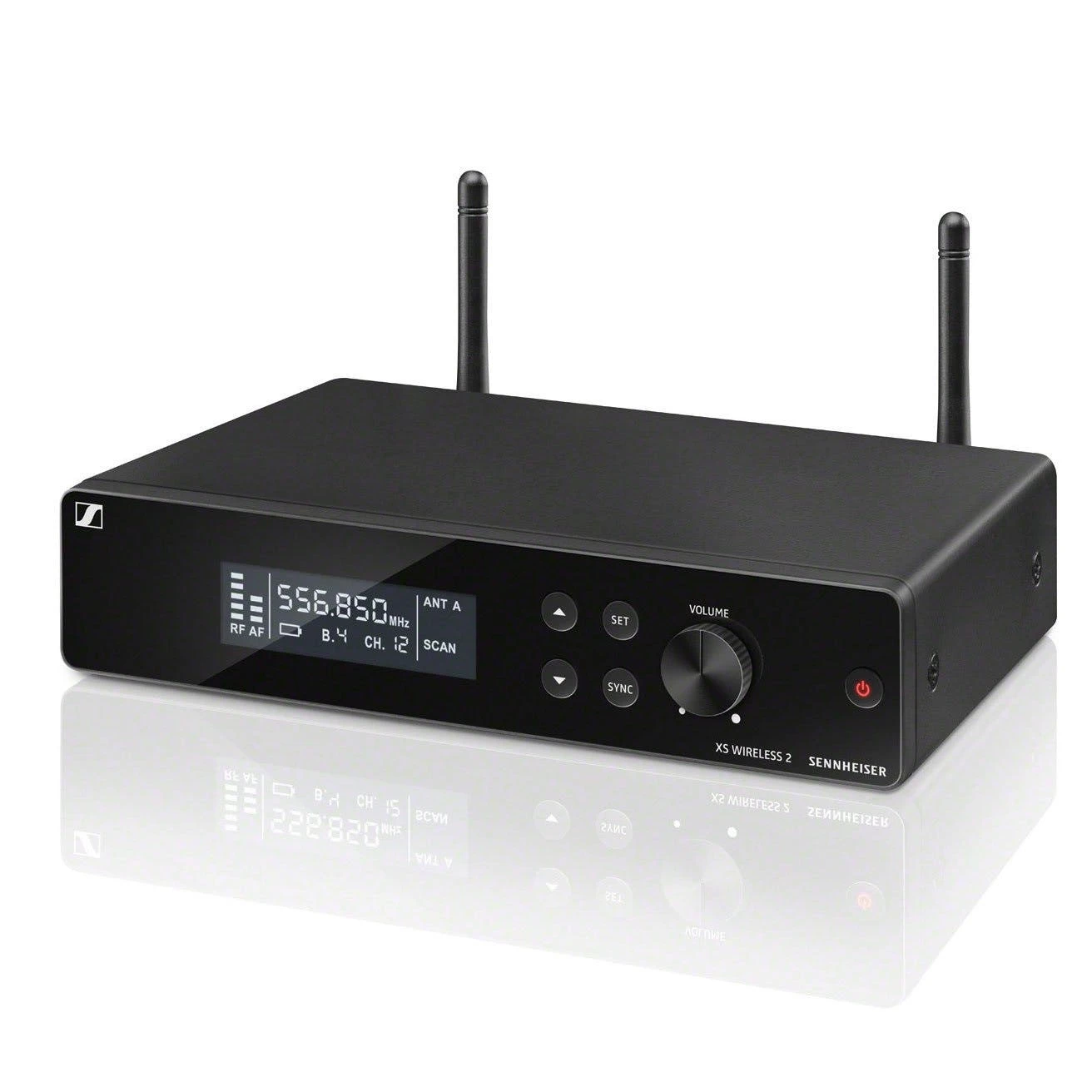

• 1 receiver EM-XSW 2

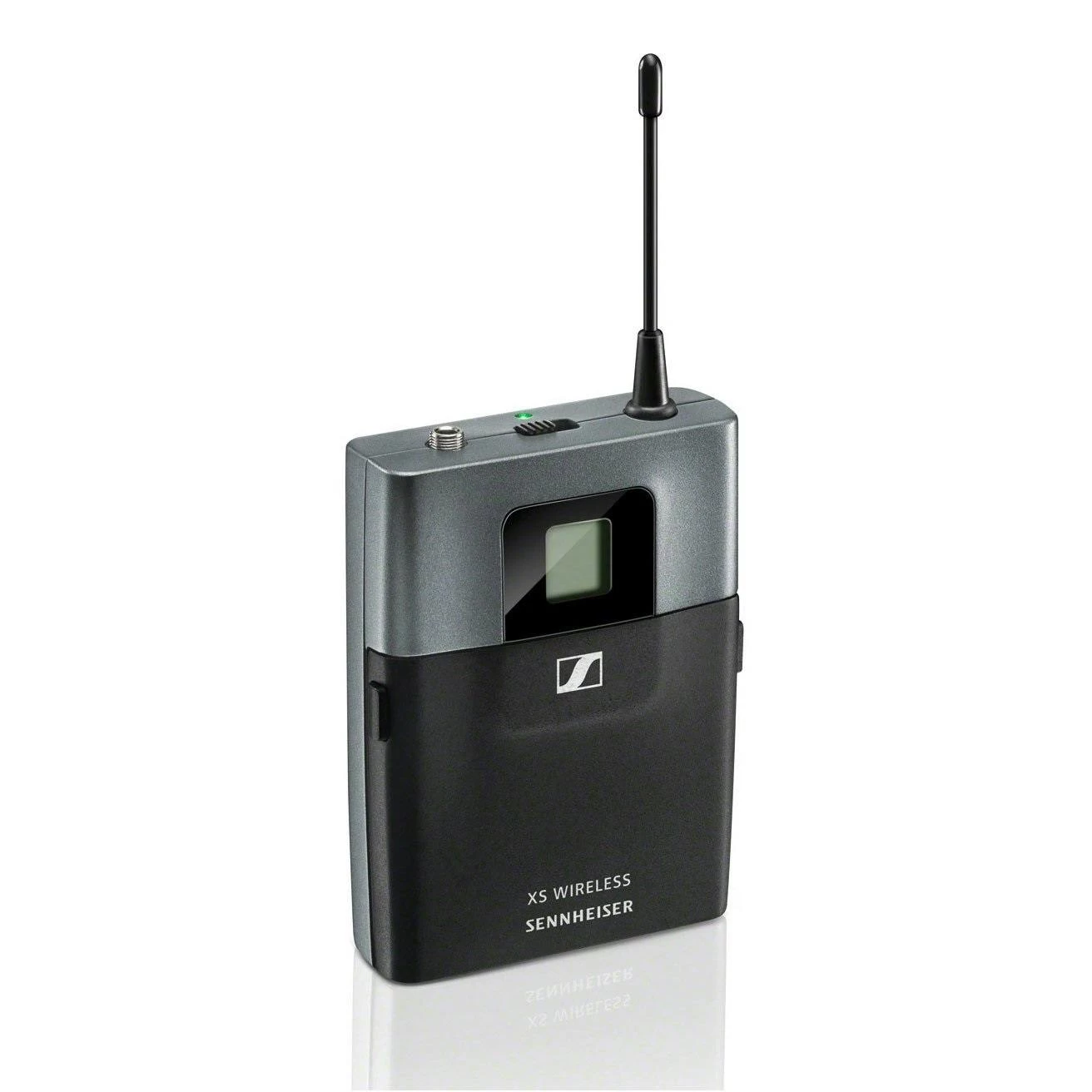

• 1 bodypack transmitter SK-XSW

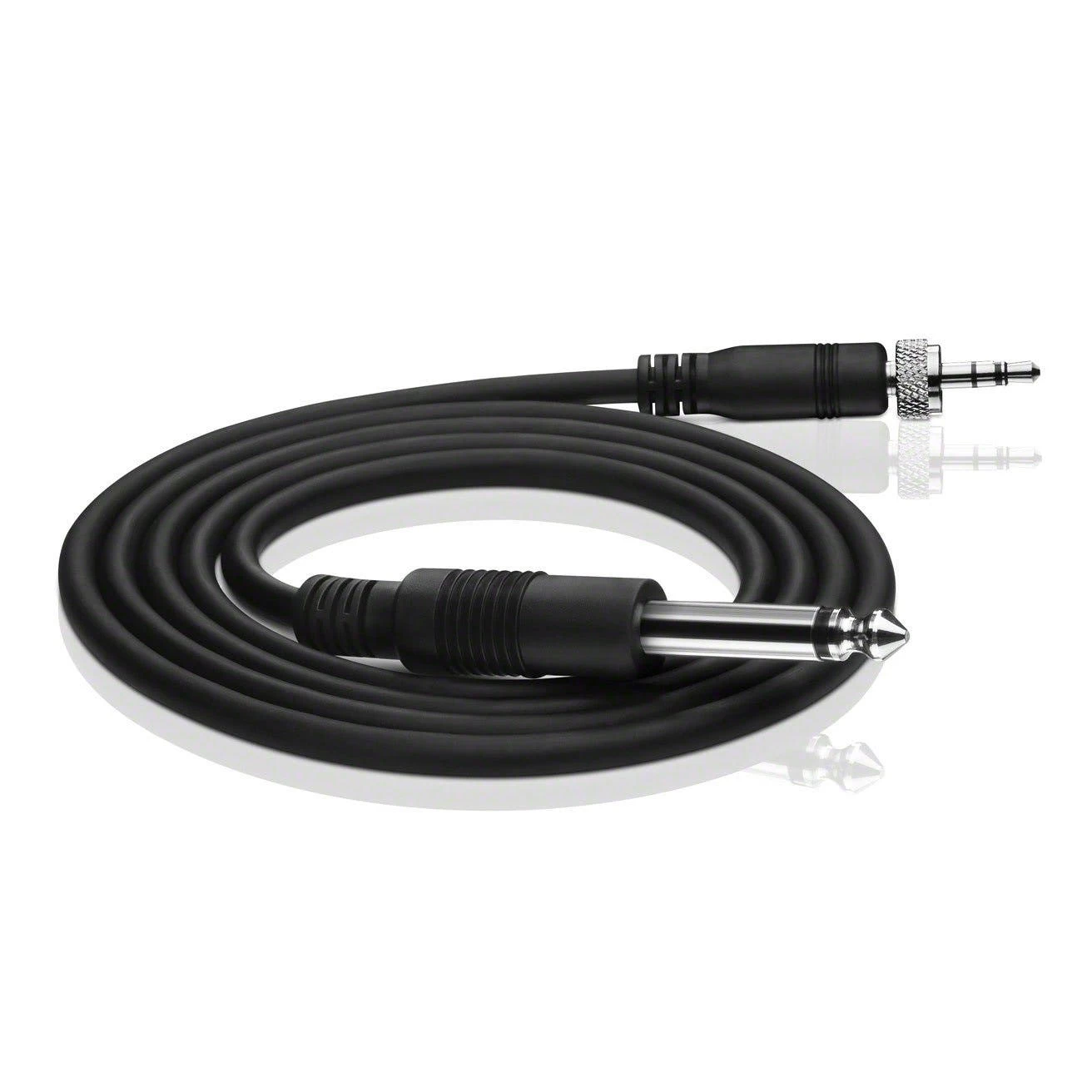

• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• user manual

Technical Specifications

Receivers

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: metal
• AF frequency response: 50 to 16,000 Hz (–3 dB)

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Housing: robust ABS
• AF frequency response: 50-16000Hz
• Frequency response: 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion: ≤ 0.9%
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: wideband FM

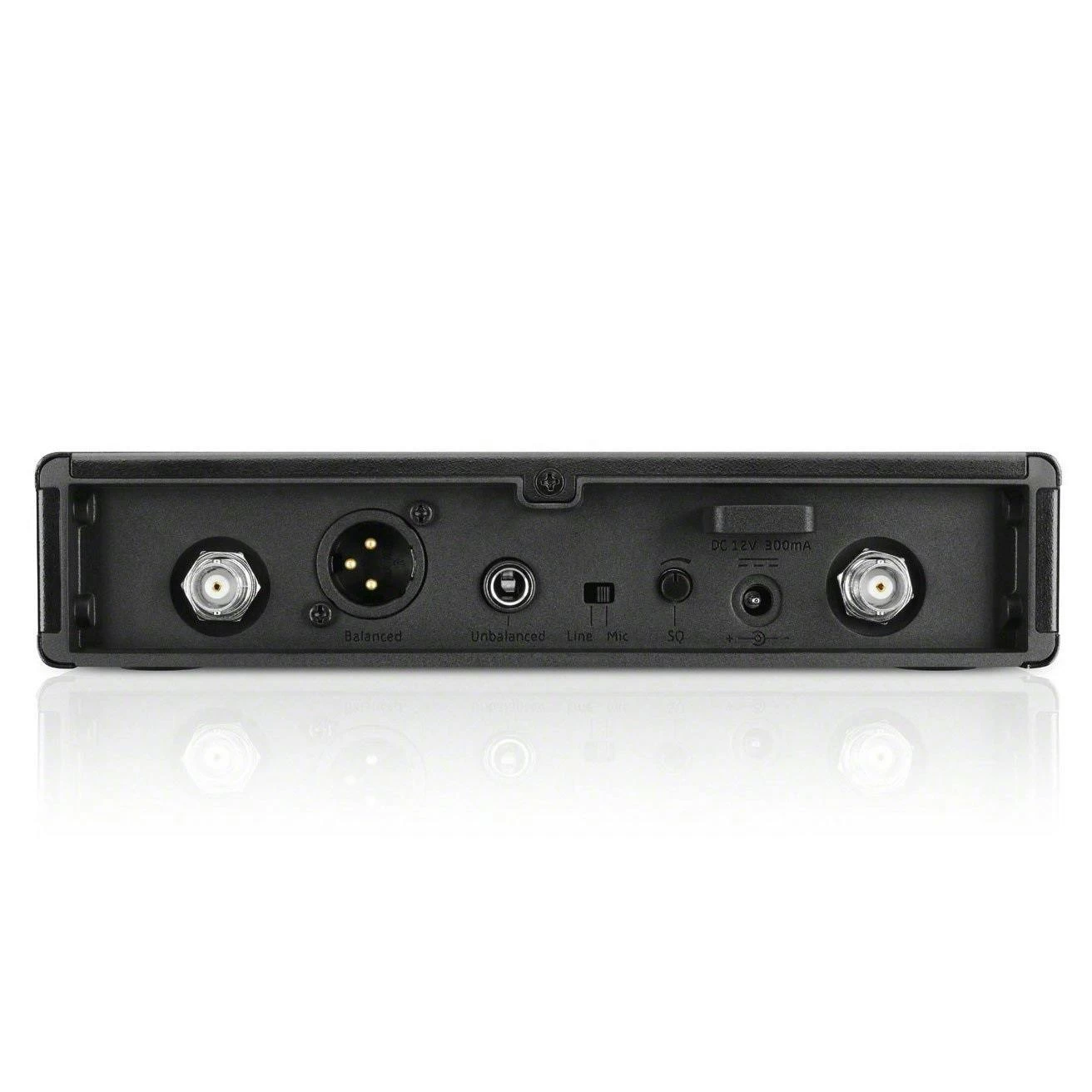

• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Diversity reception: True Diversity
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range: E: 821-832 MHz, 863-865 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)”
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: 0°C to +40°C (Operation), –20°C to +70°C (Storage)
• Receiver Principle: double superheterodyne
