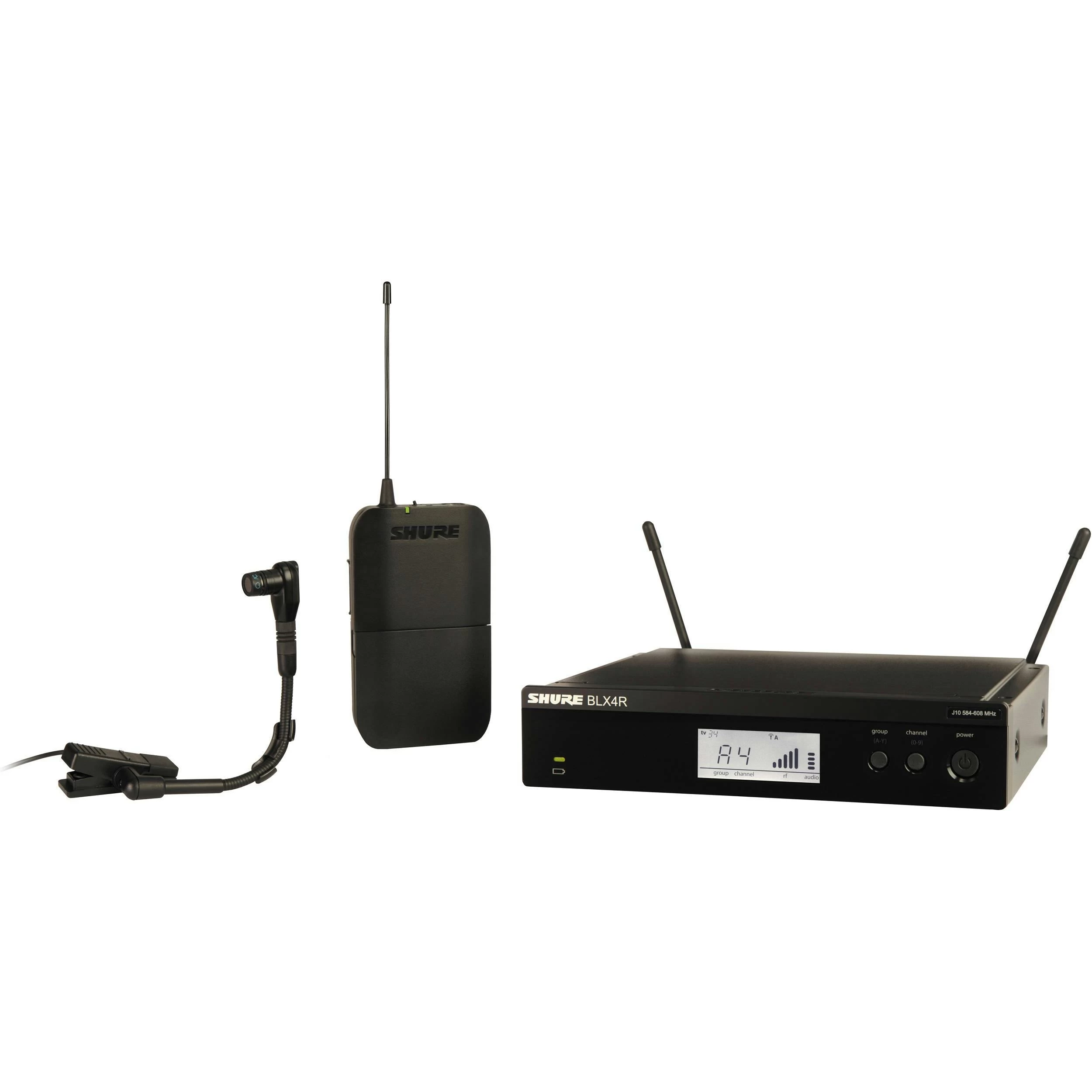

Shure BLX14R/B98 Beta Wireless Instrument System

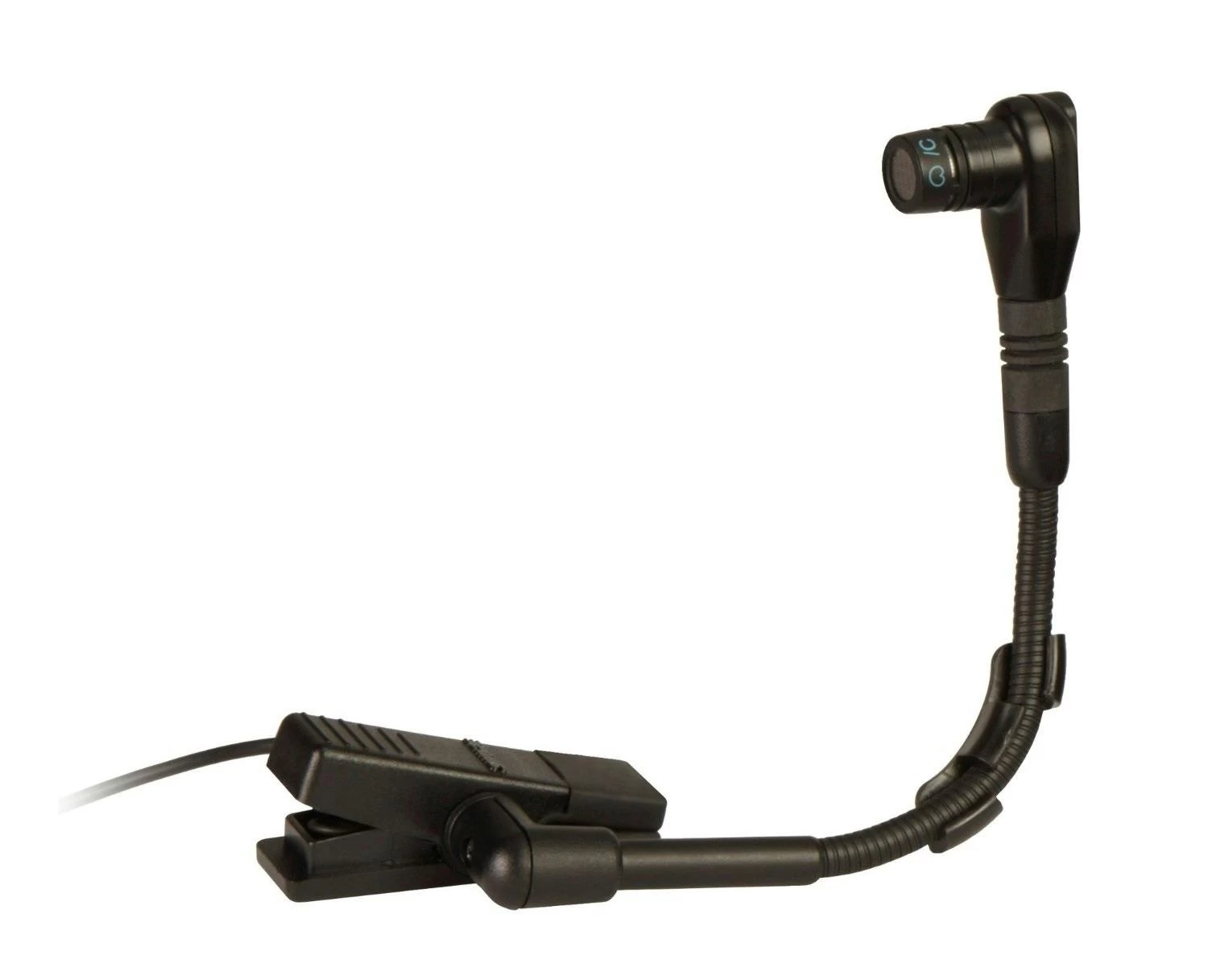

The Shure Beta Instrument Wireless System is excellent at capturing brass live or in the studio – be it saxophone, trumpet etc – and is just as good with percussion! Thanks to the clip on Beta 98H/C mic, you can position it securely in tight, often hard to reach spaces. A gooseneck design ensures you can place and aim it exactly where it’s needed, picking up your source accurately and in brilliant detail.

Setup with the accompanying wireless receiver is extremely simple, thanks to an intuitive user interface and simple, hands-on controls. It’s built to perform right out of the box due to the channel scan, easy-setup architecture. Throw in a bodypack boasting a battery with 14 hours of continual use, plus an operating range of 100m, and you’ve got a well-rounded package that’ll let you roam the stage with confidence.

Included in the Box

• 1 – 53A8611 RACK MOUNT BRACKET
• 1 – 53A8612 LONG RACK MOUNT BRACKET
• 1 – 53B8443 LINK BRACKET
• 1 – 90AZ8100 HARDWARE KIT
• 1 – 90F4046 Swivel Adapter
• 1 – 31B1856 Thread Adapter
• 2 – 95A8699 ANTENNA/BNC,1/4 WAVE
• 2 – 95A8994 ADAPTER,BULKHEAD,BNC
• 1 – 95B2313 BAG VINYL, ZIPPERED
• 2 – 95K2035 CABLE,BNC,22 in.
• 1 – Power supply

Technical Specifications

• Working Range: 91 m (300 ft) Line of Sight
• Audio Frequency Response: 50 to 15,000 Hz
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)

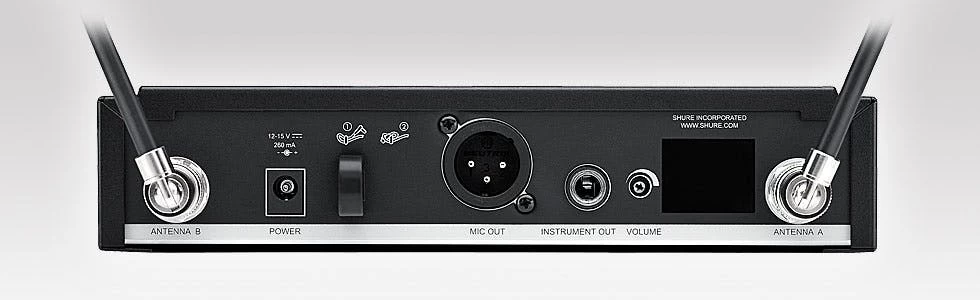

• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

• Output Impedance (XLR connector): 200 Ω
• Output Impedance (6.35 mm (1/4″) connector): 50 Ω
• Audio Output Level (XLR connector): –20.5 dBV (into 100 kΩ load)
• Audio Output Level (6.35 mm (1/4″) connector): –13 dBV (into 100 kΩ load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
• Weight (without antennas) 2.2 lbs (998 g)
• Housing: Molded ABS, steel
• Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
