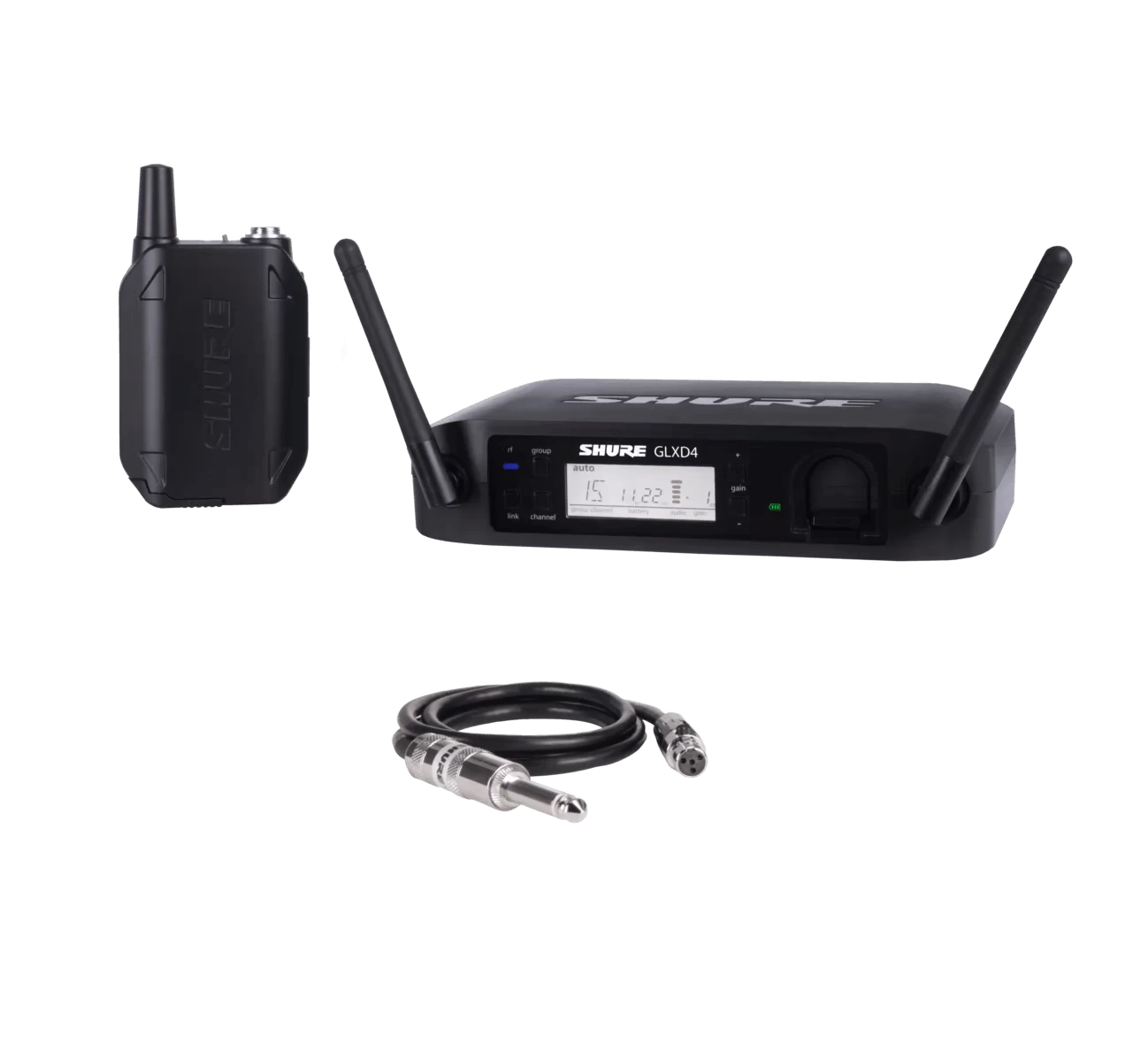

Shure GLXD14 Beta Digital Wireless Guitar System

Shure’s Beta Guitar Wireless System is both incredibly powerful and extremely simple to use! Intelligent frequency hopping ensures you’ll always be on the strongest frequency (with no interruption to your signal), maintaining the same great guitar tone – exactly as if you were using a cable! Shure’s cutting edge digital technology really does sound that good. And because it works over 2.4GHz, you don’t even need a licence!

Key Features

• Exceptional digital audio clarity
• Operates in 2.4 GHz spectrum, available worldwide
• Rechargeable batteries deliver cost-efficiency and up to 11.5 hours of runtime
• Adjustable transmitter gain to optimize audio signal
• Automatically moves away from interference without audio interruption
• RF back-channel for remote control of transmitter functions
• Globally-unlicensed 2.4 GHz frequency band allows operation of up to 4 compatible systems in a typical setting and up to
• 8 compatible systems under ideal conditions
• Automatic transmitter power-off to conserve battery life when transmitter is not in use

Whats Included?

• WA302 Instrument cable:

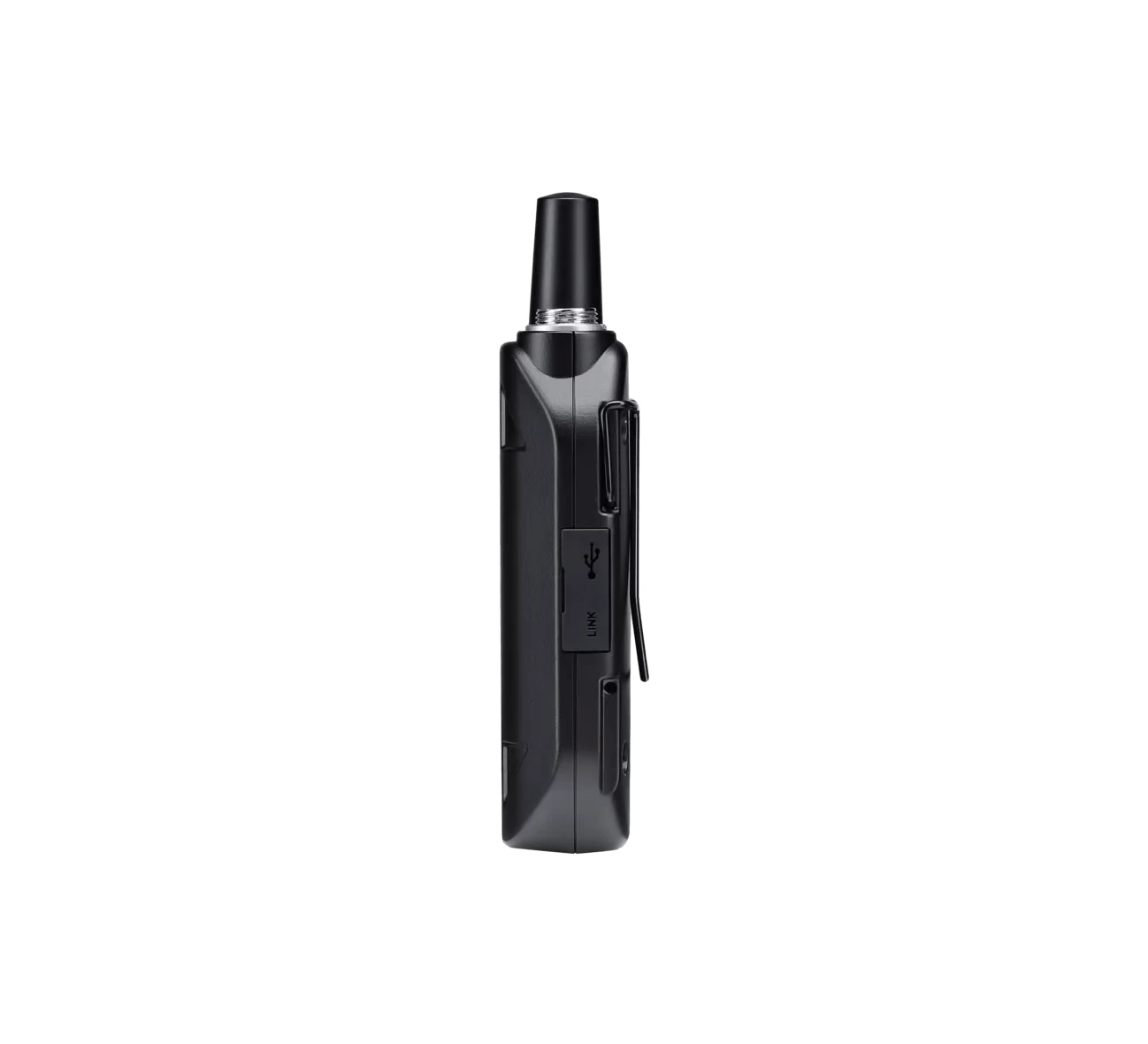

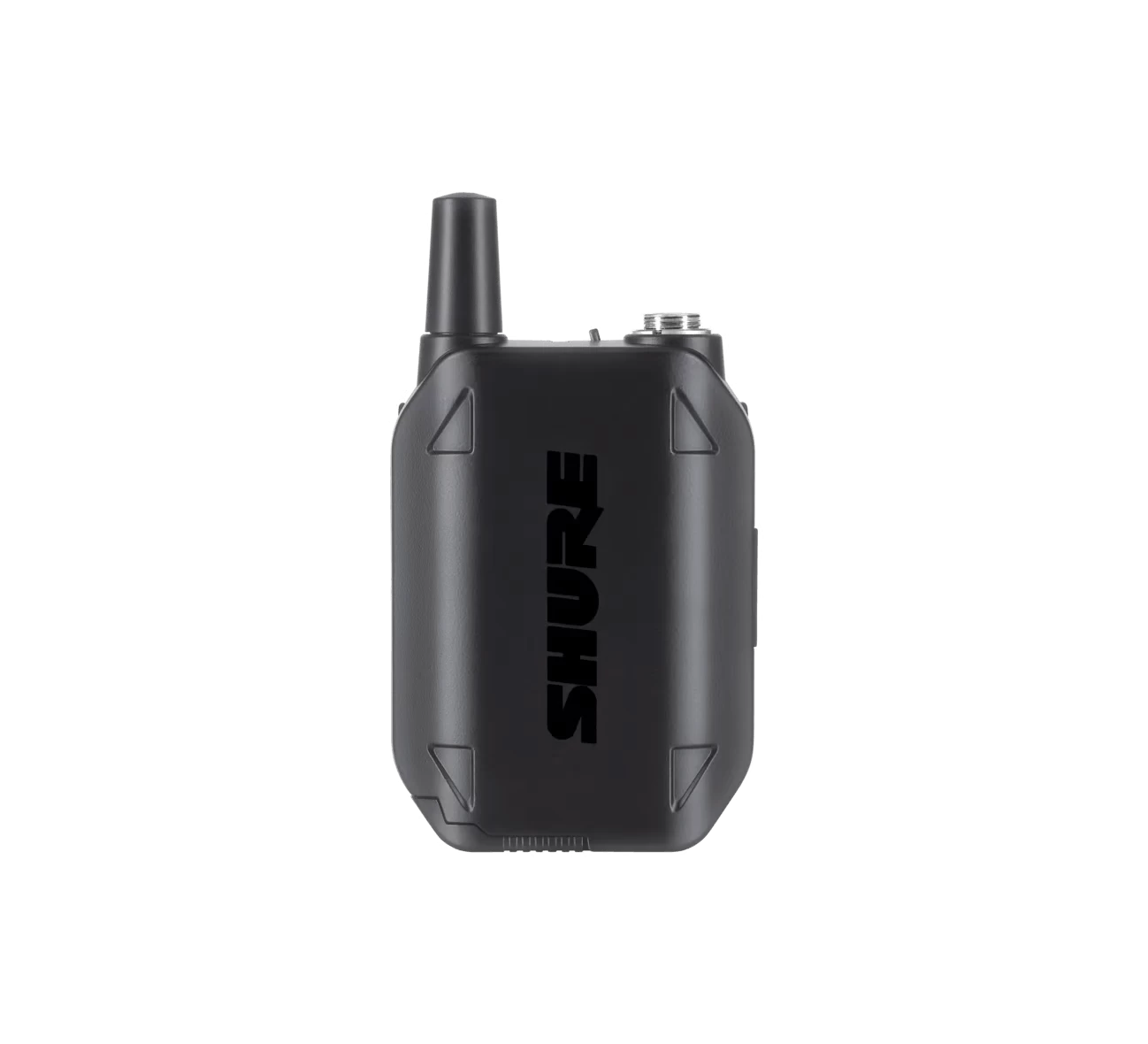

• The GLXD1 bodypack transmitter

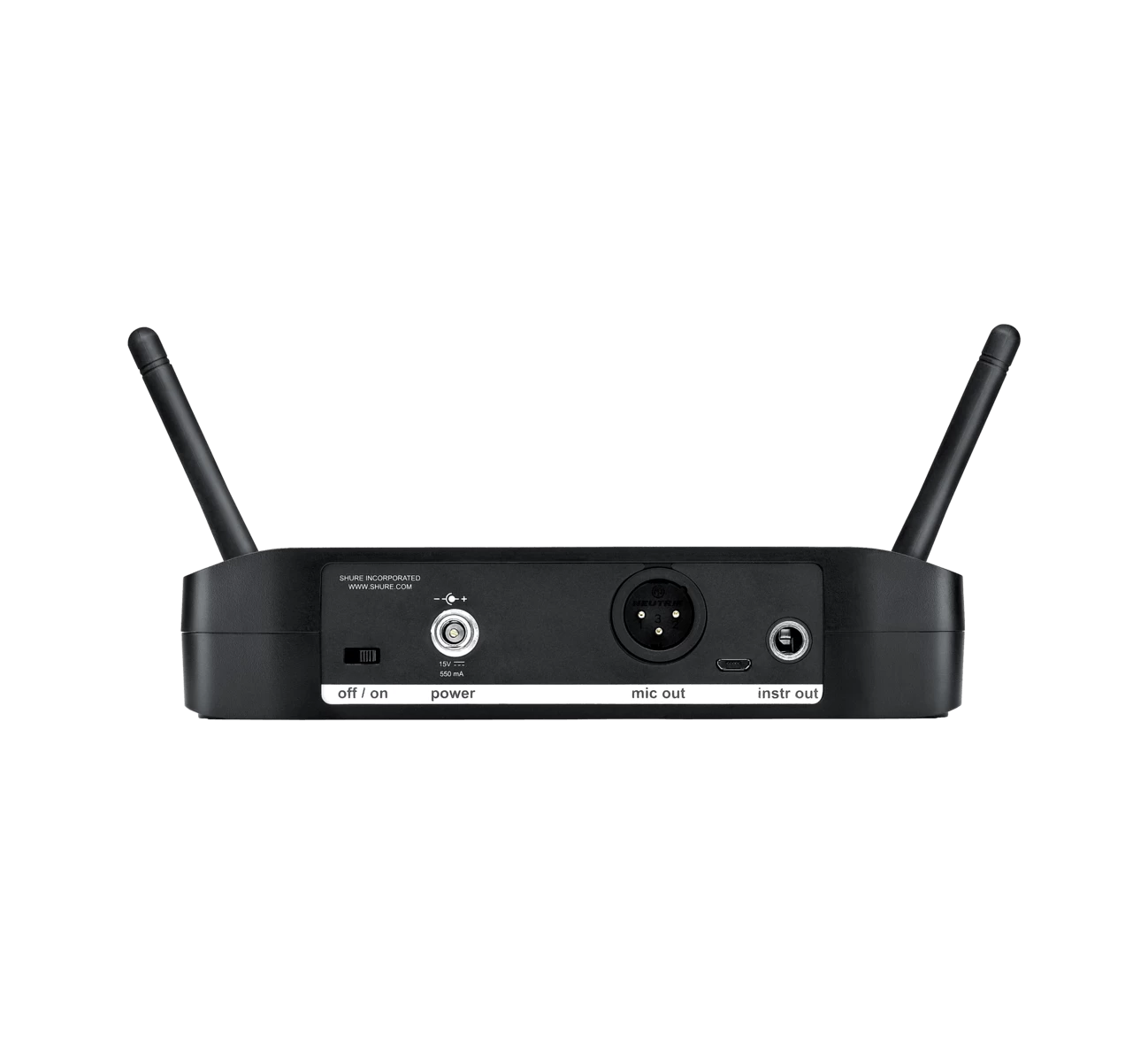

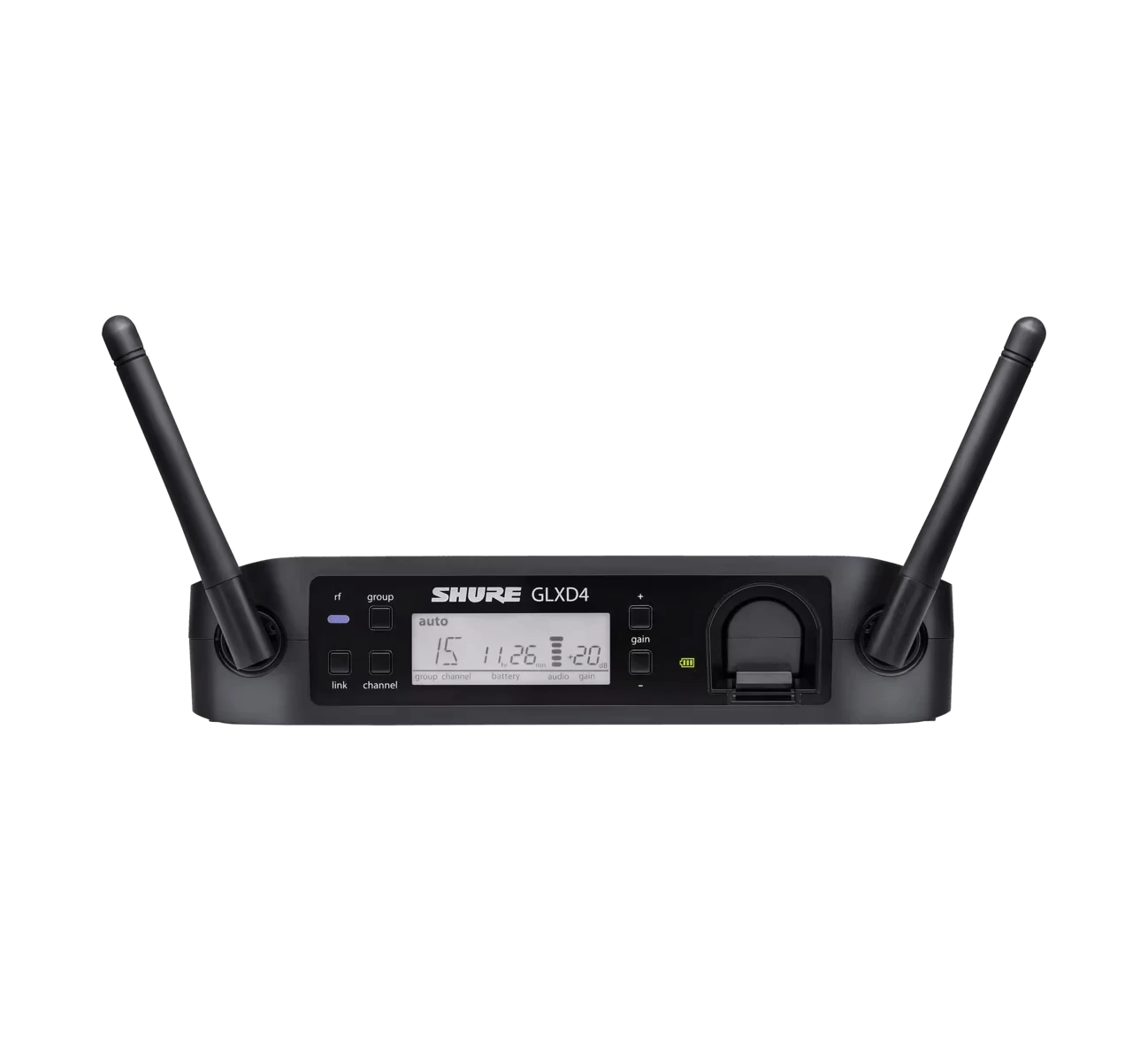

• GLXD4 Receiver
• SB902A Lithium-ion Rechargeable Battery
• PS24 power supply
• 95E16526 Carrying case
• 95A21651 USB cable

Technical Specifications

• Tuning Bandwidth: 2400–2483.5 MHz
• Working Range: Indoor – Up to 30 m (100 ft) typical, Up to 60 m (200 ft) maximum / Outdoor – Up to 20 m ( 65 ft) typical, Up to 50 m (165 ft) maximum
• Transmit Mode: Shure proprietary digital
• Audio Frequency Response: 20 Hz– 20 kHz
• Dynamic Range: 120 dB, A­weighted
• RF Sensitivity: ­88 dBm, typical
• Total Harmonic Distortion: 0.2%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F)
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Polarity: Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance ¼-inch output.
• Battery Life: Up to 11.5 hours
• Guitar Tuner: Tuning Accuracy ±1 cent
• Tuning Range F#0 to C8
• Channel Count: 4 typical, Up to 8 maximum

GLXD1 Specifications

• Dimensions: 90 x 65 x 23 mm ( 3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)
• Weight: 132 g (4.7 oz.) without batteries
• Power Requirements: 3.7 V, Rechargeable Li-Ion
• Housing: Cast Metal, Black Powdercoat
• Input Impedance: 900 kΩ
• RF Output Power: 10 mW E.I.R.P. max

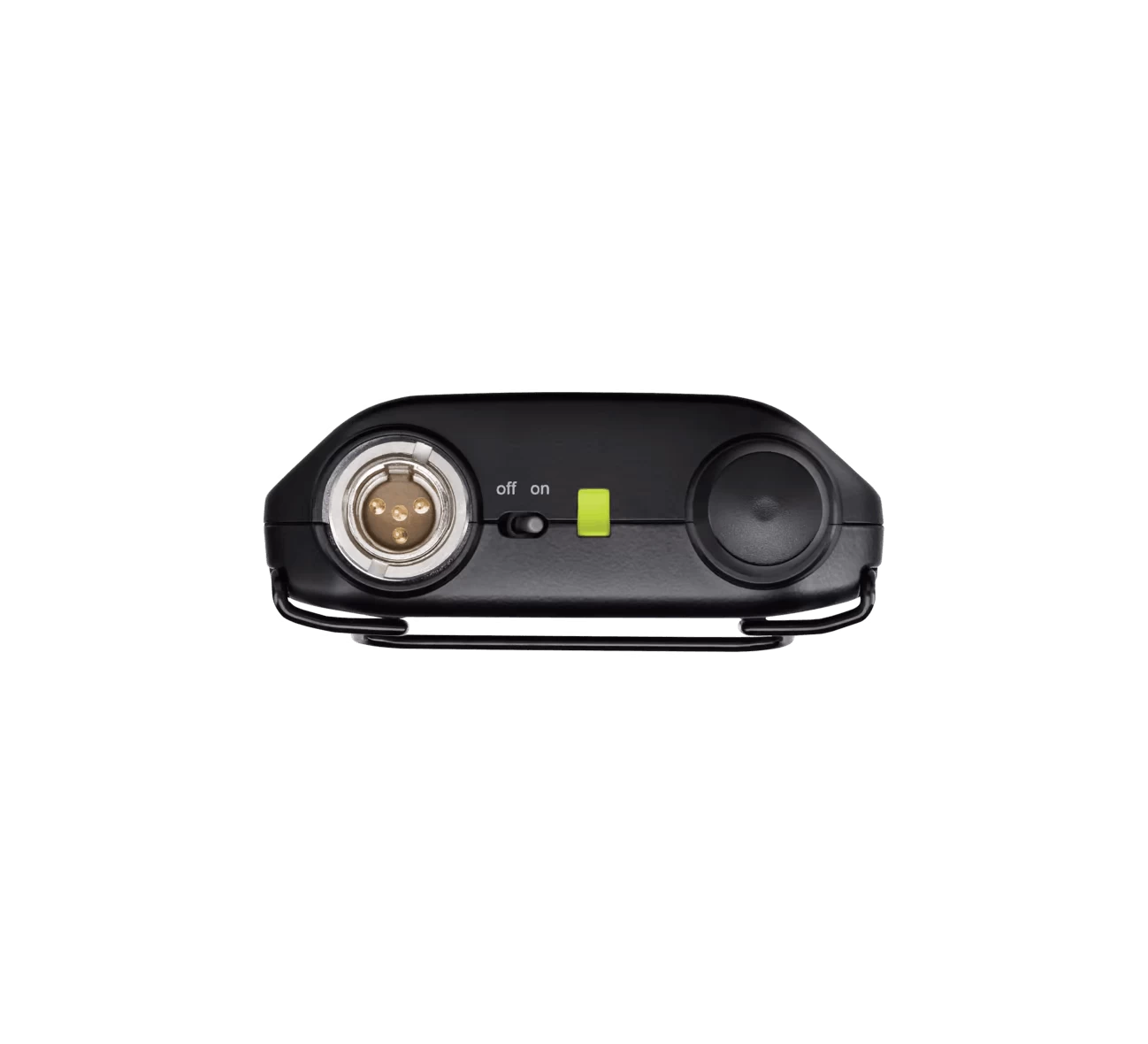

Transmitter Input

• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced
• Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp­p)
• Antenna Type: Internal Monopole
