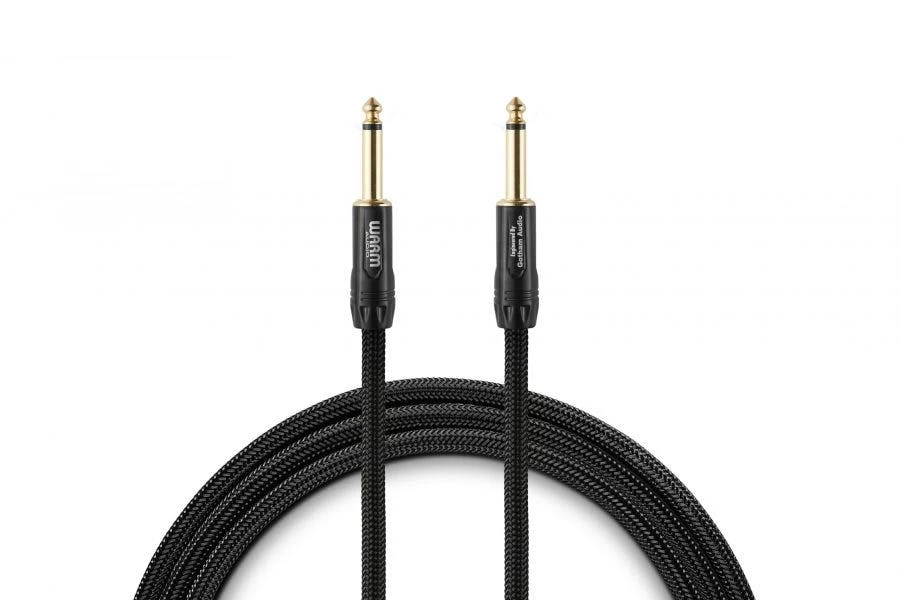

Warm Audio Premier Series Instrument Cable 25 Inch 7.6 Meters

Taking advantage of Gotham AG’s state-of-the-art construction to deliver near-perfect signal transfer and both offer a lifetime warranty, the Premier line adds above-and-beyond features like gold-plated connectors, four-conductor Starquad construction for powerful rejection of EMI, and Double-Reussen shielding for increased rejection of RFI.

Warm Audio cables do not add gain, color, effects, or try to add anything “extra” to your signal. The purists over at Warm Audio believe that premium cables should “Do no harm”, transferring interference-free signal from connection to connection.

A traditional balanced cable uses three cores of wire to carry the audio signals: one shielded core for the hot/positive leg, one shielded core for the cold/negative leg (which is wired in reverse polarity to the positive leg), and a plain outer wrap that functions as the ground. A balanced audio system effectively rejects most induced noise encountered along the cable’s length by removing signals that are common to both the hot and cold legs.

StarQuad construction takes that concept even further, by using four cores instead of two: two cores each for the hot/positive and cold/negative legs and a single ground. This helps to further shield the audio from RFI (radio frequency interference) even more than a traditional 3-conductor cable.

Most cable construction techniques use an outer wrap of wire to act as the ground. Some manufacturers braid this wire, while others simply wrap the wires in a highly uniform way to shield the interior wires from interference.

Double-Reussen shielding goes much further than more traditional techniques in two ways: First, the cable is wrapped with not one but TWO separate shields, and second, the outer shield is wrapped in a contrary direction to the inner shield. This creates a stronger and more complete shield from RFI for the internal cores, and can result in an astounding reduction of interference.

Key Features:

• Braded Cable:
  Not only does it provide a very premium feel, it helps the longevity of the cable as well as the shieleding from outside noise
• Gold plated Connector

Specifications:

• Connectors
  – Type:TS
  – Color:Black/Gold
• Cable:
  – Diameter: 1/4″ (6mm)
  – Colour: Black
  – Jacket Material: Flexible PVC, Woven Nylon
• Conductor Wires
  – Material: Standard Bare Copper Wires
  – Diameter: 22 AWG (0.6mm)
• Shield
  – Shield 1: Bare Copper Wires, Spiral Shield, Screen will be done in opposite way of conductor twist
  – Shield 2: Bare Copper Wires, Spiral Shield, Screen will be done in opposite way of first wrapping
• Coverage: 100%
