Xvive Wireless Guitar System In Black

Please note: Unit is not compatible with active pickup-equipped guitars.

If you always thought that guitar wireless systems were over-complicated and unreliable, you’ll be pleasantly surprised that these days things are much simpler.

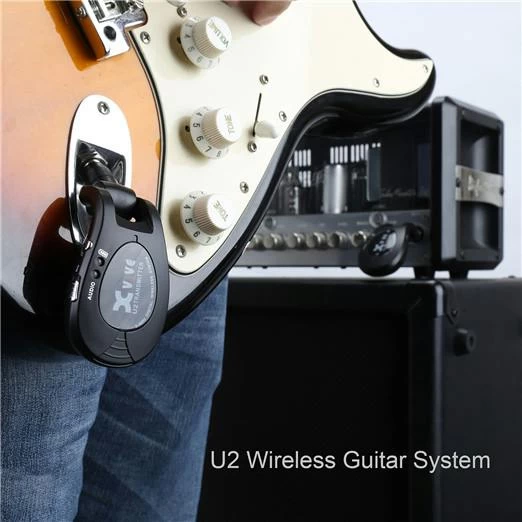

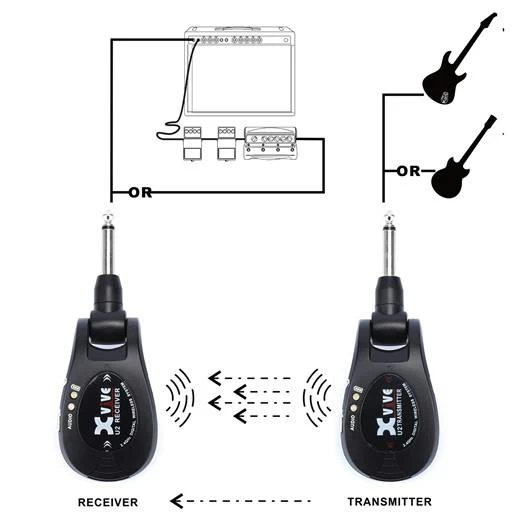

The U2 systems from X-Vive offer a simple and reliable connection from your guitar to your amp or pedalboard. They’re compact, simple to use and come in colours to suit your guitar.

Your sound, Without Compromise

The U2 transmits your sound with a full 20hz-20khz frequency response. And with only 6ms of latency you wont notice any perceptible difference in tone or response compared to your usual high quality cable.

The wireless system operates at 2.4GHz ISM band for crystal clear broadcasting ensuring the integrity of your signal on stage and covers 70 feet of range without any signal dropout.

The U2 offers a rechargable Li-ion battery that can last up to 5 hours per charge.

Operation Guide

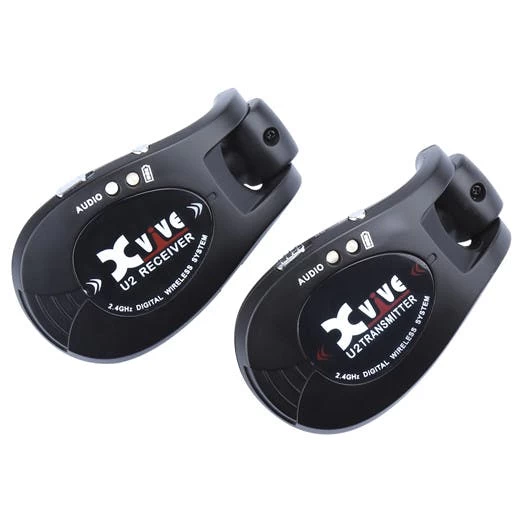

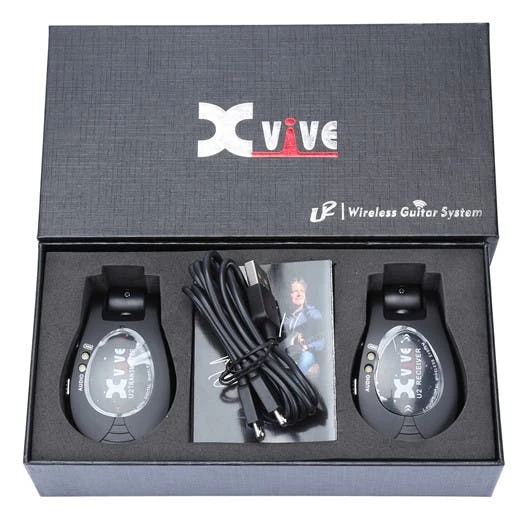

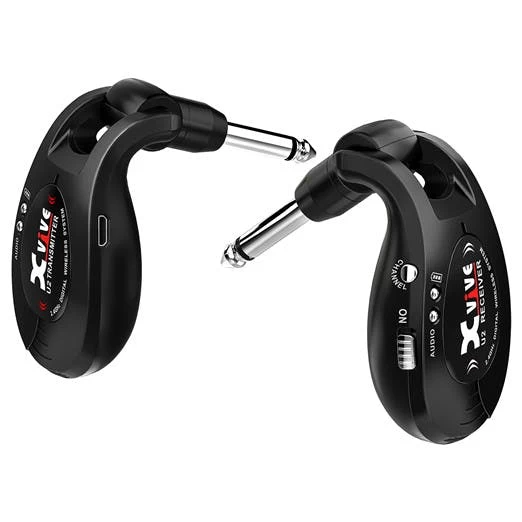

In the Box

• Receiver
• Transmitter

Specifications

• WIRELESS TYPE: 2.4 GHz ISM worldwide open band
• BIT DEPTH/SAMPLE RATE: 24-bit / 48 kHz
• SWITCHABLE CHANNELS: 4
• SIMULTANEOUS CHANNELS: 4
• FREQUENCY RESPONSE: 20 Hz – 20 kHz (-3dB)
• DYNAMIC RANGE: 103 dB (-3 dB)
• SIGNAL-TO-NOISE RATIO: 103 dB
• TOTAL HARMONIC DISTORTION:@ 0.2%
• LATENCY: 5 ms
• OPERATING RANGE: 21.3 m / 70 ft (line-of-sight)

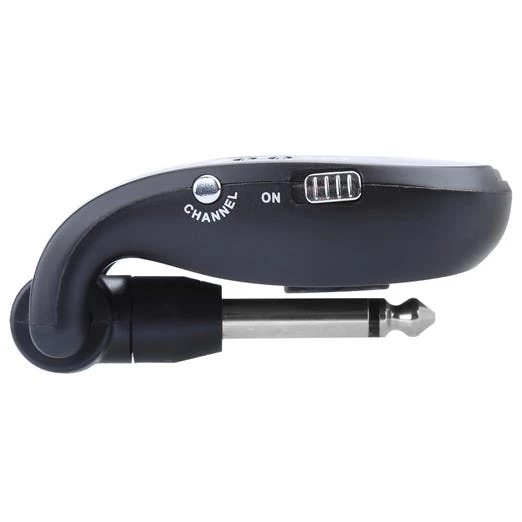

Transmitter

• CONNECTOR: 1/4″ TS
• DIMENSIONS: 75 x 44 x 30 mm / 2.95″ x 1.73″ x 1.18″ (with plug extended, L: 123 mm / 4.84″)
• WEIGHT: 40.7 g / 1.43 oz
• MUTE: Yes

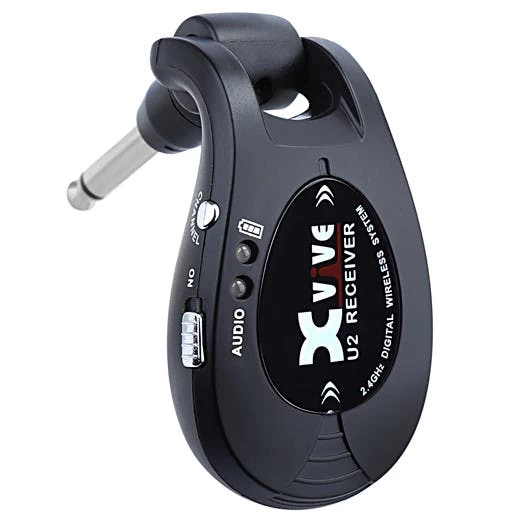

Receiver

• CONNECTOR: 1/4″ TS
• DIMENSIONS: 75 x 44 x 30 mm / 2.95″ x 1.73″ x 1.18″ (with plug extended, L: 123 mm / 4.84″)
• WEIGHT: 40 g / 1.41 oz

Battery

• TYPE: Rechargeable Lithium-ion (internal)
• BATTERY LIFE: 5 hours
• CHARGING TIME: 2 hrs (full charge)
• CHARGING VOLTAGE: 5V (USB)
• USABLE WHILE CHARGING: Yes
